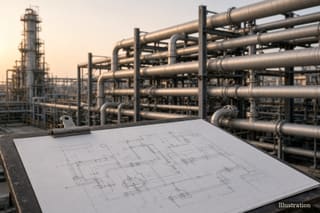

The line on the drawing
On paper, a pipe is a line. In the field it has weight.
The short version
- A line on a drawing represents equipment with weight, history and consequences in the field.
- The drawing matters because many workers may never see the entire system at once.
- Good records let the next person understand what the last person changed.
A line is never only a line
On paper, a pipe is a line.
In the field it has weight.
It has elevation, supports, heat, insulation, corrosion, valves, flanges, paint, history and whatever somebody had to build around it twenty years after the drawing was first issued.
Industrial work lives in the argument between the line and the pipe.
The drawing matters because memory is not a design basis. Process-safety rules require information about equipment and process technology to be documented and kept current. Changes that affect covered processes have to be managed. Procedures may need to change when equipment changes. The formal record exists because the plant has to survive individual memory.
The field matters because paper is not steel.
A mechanic can stand in front of a piece of equipment and see access problems the drawing does not feel. An operator can know that a valve takes longer to move than the symbol suggests. An inspector may find a condition that the original design never expected to age in exactly this way. A planner may discover that the “easy” route on paper crosses the path of three other jobs.
The mature system does not choose between document and experience.
Field reality changes the meaning
It forces them to meet.
This is harder than it sounds because human beings love sides.
The old hand says, I've done this for thirty years.
The engineer says, That's not what the drawing says.
Either sentence can be wisdom. Either sentence can be arrogance.
Experience without a record can die at retirement. A record without field reality can become beautifully organized fiction.
The best work occurs when the physical plant corrects the drawing and the drawing corrects the memory, and somebody cares enough to update whichever one was wrong.
That last step matters.
The drawing becomes memory
A field correction that lives only in one person's head is not yet institutional knowledge. A red mark that never reaches the controlled record is memory waiting to disappear. A procedure that no longer matches the equipment teaches the next person to distrust procedures. Once that distrust becomes culture, every future instruction has to fight the history of the last bad one.
This is why documentation is not merely clerical.
It is how an organization refuses to make the next generation rediscover the same truth.
Families do something similar with stories. Towns do it with archives. A grandfather remembers why a road bends. A city map records that the road bends even after the grandfather is gone. Neither is the whole truth. One contains lived meaning; the other allows the fact to survive.
Baytown itself is full of this tension. The town people remember and the town on the map are not identical. Neither are the plant people remember and the plant on the drawing.
The line is clean.
The world is not.
Good work respects both.
Sources
- OSHA, Process Safety Management, process safety information and management of change: https://www.osha.gov/laws-regs/regulations/standardnumber/1910/1910.119
- OSHA PSM Compliance Guidelines, Appendix C: https://www.osha.gov/laws-regs/regulations/standardnumber/1910/1910.119AppC
En español
La línea en el plano
En el papel, una tubería es una línea. En el campo tiene peso.
Tiene altura, soportes, calor, aislamiento, corrosión, válvulas, bridas, pintura, historia y todo lo que se construyó alrededor después del diseño original.
El trabajo industrial vive en la conversación entre la línea y la tubería.
El plano importa porque la memoria no es una base de diseño. Las reglas de seguridad de procesos exigen información documentada y actualizada; los cambios tienen que administrarse. El registro formal permite que la planta sobreviva a la memoria de una persona.
El campo importa porque el papel no es acero.
El mecánico ve acceso. El operador conoce el comportamiento. El inspector encuentra envejecimiento. El planificador descubre que la ruta sencilla en el plano cruza tres trabajos reales.
El sistema maduro no elige entre experiencia y documento. Los obliga a encontrarse.
La experiencia sin registro puede morir con la jubilación. El registro sin realidad puede convertirse en ficción perfectamente archivada.
El buen trabajo ocurre cuando la planta corrige el plano y el plano corrige la memoria, y alguien actualiza lo que estaba equivocado.
Una familia hace algo parecido con sus historias. Un pueblo lo hace con sus archivos. La memoria da significado; el registro ayuda a que el hecho sobreviva.
La línea es limpia.
El mundo no.
El buen trabajo respeta ambos.
